Motherboards

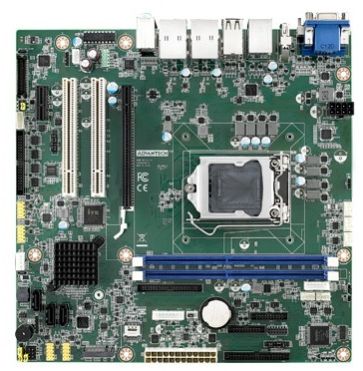

 Micro-ATX Motherboard 12th/13th/14th Gen Intel® Core™ Processor LGA1700

• Intel® Core™ 14/13/12th gen processors with H610E chipset
• Up to 64GB DDR4 UDIMMs for data transfer
• PCIe x16 slot Gen4, PCIe x4 slot Gen3, PCI slot
• Numerous expansion: 8 USB 3.2 ports, 6 USB 2.0 ports, and 10 COM

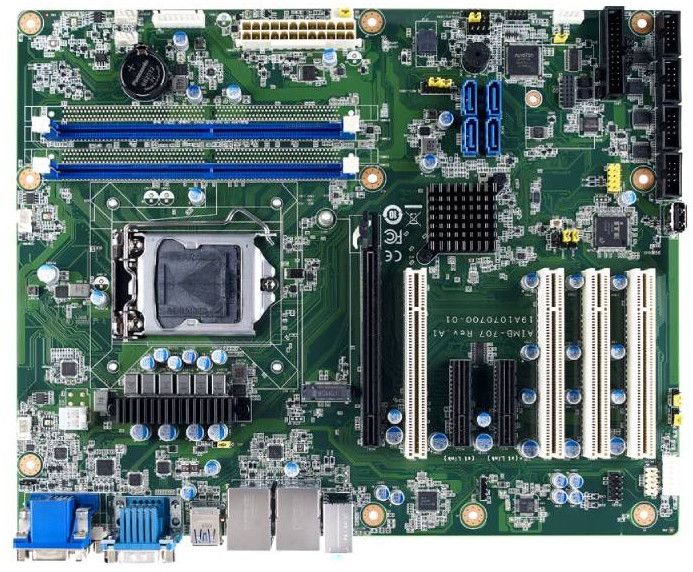

LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COMs

• Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H420E chipset
• Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB
• Support VGA and DVI display
• M.2, SATA 3.0, USB 3.2, dual GbEs
• 5 RS-232 and 1 RS-232/422/485 serial ports
• 1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots
• Note 1: Legacy platform is not supported.
• Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
• Note 3: Intel® Platform Trust Technology (Intel® PTT) ready for Windows 11.

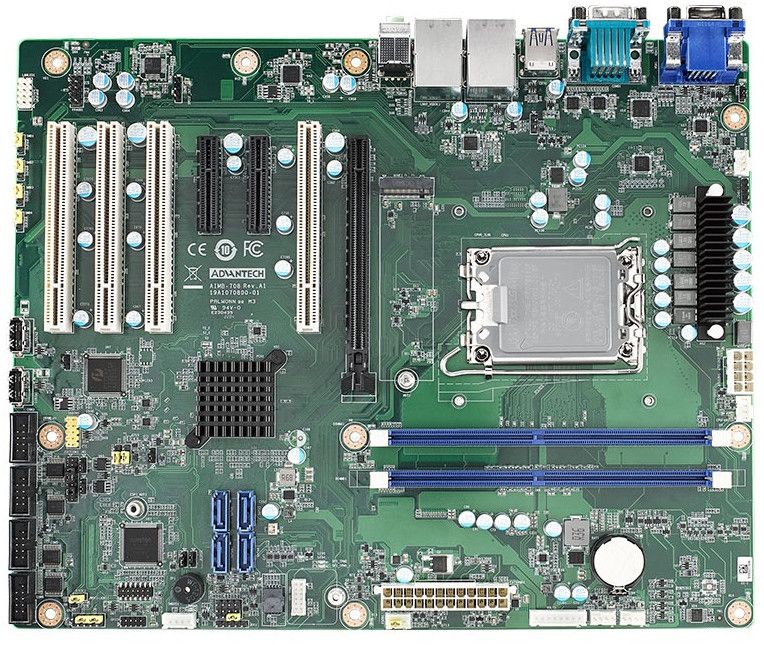

 LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/ Celeron® ATX with HDMI/VGA, DDR4, USB 3.2, M.2, 6 COMs

• Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H610E chipset
• Two DIMM sockets up to 64GB DDR4 3200
• Dual display HDMI/VGA and dual GbE LAN
• M.2, SATA 3.0, USB 3.2 Gen1
• 5 RS-232 and 1 RS-232/422/485 serial ports
• 1 PCIe x16 (Gen 4) and 2 PCIe x4 (x2 Gen 3 link), and 4 PCI expansion slots
• Support Windows 11 IoT Enterprise LTSC

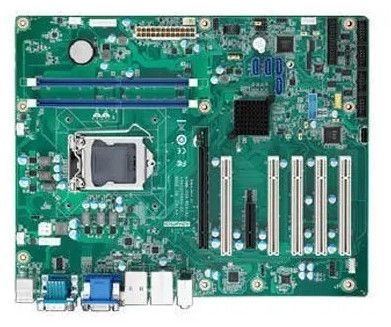

 LGA1151 6th/7th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® ATX with Triple Display, DDR4, SATA III

• Supports Intel® 6th/7th generation Core™ i7/i5/i3/Pentium®/Celeron® processor with Q170 chipset
• Four DIMM sockets support up to 64 GB DDR4 1866/2133/2400
• Supports triple display VGA/2 DVI-D and dual GbE LAN
• Supports SATA RAID 0, 1, 5, 10, USB 3.0
• Supports Intel vPro, AMT 11.0 & TPM technologies
• Note 1: dTPM 2.0 module is required to enable Intel vPro and TPM technologies
• Note 2: Only Intel 6th generation processor can support Windows 7

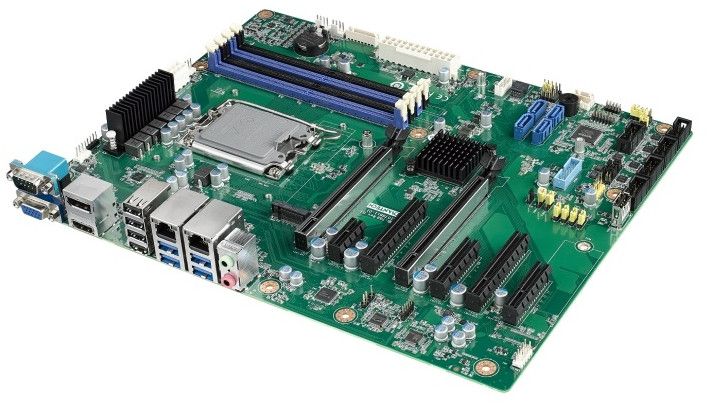

LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2

• Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q670E/R680E chipset
• Dual PCIe x16 expansion slots
• DDR5 UDIMM up to 48GB per slot; 192 GB total
• Seven PCIe slots or Dual M.2 M Key for NVMe RAID
• Triple display DP/HDMI/VGA and dual GbE LAN
• M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 1
• Advantech iBMC remote out-of-band power management solution on DeviceOn

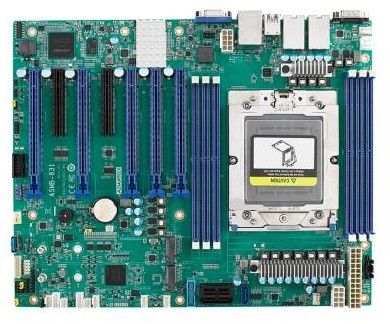

AMD® EPYC™ Embedded 9004/9005 ATX Server Board with 6 x DDR5, 5 x PCIe x16 + 2 x PCIe x8, 9 x SATA3, 7 x USB 3.2 (Gen1), Dual 10GbE, and IPMI

• ATX server board with AMD® EPYC™ Embedded 9004/9005 processor
• DDR5 4800 MHz RDIMM
• Five PCIe x16 (Gen5) and two PCIe x8 (Gen5) for four double-deck cards
• Intel® X710-AT2 dual 10GbE ports
• Nine SATA3 and seven USB 3.2 (Gen1) ports
• Two M.2 2280/22110 (SATA / PCIe compatible)
• 0 ~ 60 °C/ 32 ~ 140 °F ambient operating temperature range

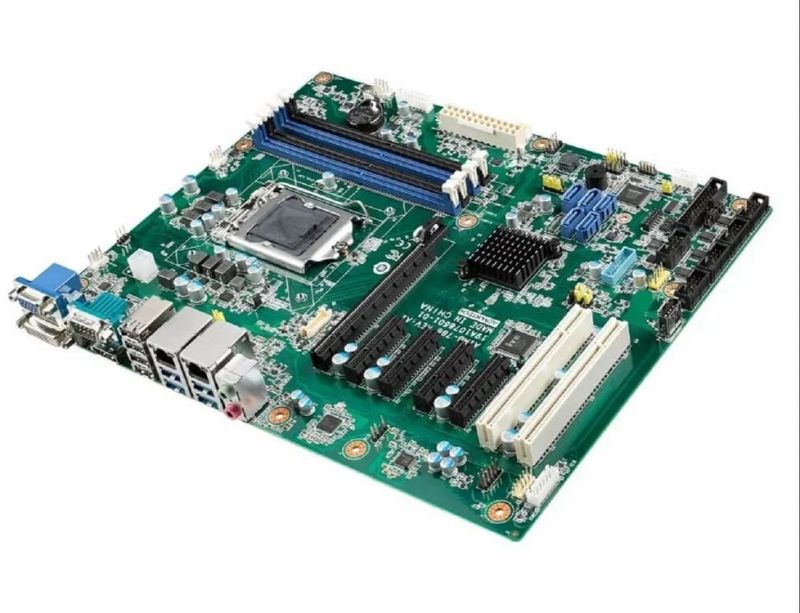

 Micro-ATX Motherboard 8th/9th Gen Intel® Core™ Processor LGA1151

• Supports Intel® 8th/9th Gen Core i7/i5/i3 processor with H310 chipset
• Supports up to 14 COM, 8 USB 3.0, 12 USB 2.0, TPM 1.2/2.0 (optional)
• Supports Dual display of VGA, DP, DVI, eDP, LVDS (optional) and two GbE LAN
• Two DIMM sockets support up to 64 GB DDR4 2666 MHz SDRAM
• Supports WISE PaaS/Device-On, McAfee, Acronis, Edge AI Suite and Embedded Software APIs

LGA 1151 Intel® Xeon® E3 v5/v6 & 6th/7th Generation Core™ Series Micro ATX Server Board with 4 DDR4, 1 PCIe x16, 3 PCIe x4, Quad LANs, USB 3.0

• Supports LGA 1151 Intel® Xeon® E3-1200 v5/v6 and 6th/7th generation Core™ i7/i5/i3 processors
• DDR4 ECC/non-ECC 2400/2133/1866/1600 MHz DIMM up to 64GB
• One PCIe x16 slot (Gen3 x16 link), three PCIe x4 slots (2 Gen3 x4 link, 1 Gen3 x1 link)
• Triple display - two DVI-D and one VGA ports
• Supports up to ten RS-232 or six RS-232 and four RS-422/485 ports
• Rackmount optimized placement with positive air flow design
• 0 ~ 60 °C ambient operation temperature range

LGA 3647-P0 Intel® Xeon® Scalable ATX Server Board with 6 DDR4, 5 PCIe x8 or 2 PCIe x16 and 1 PCIe x8, 8 SATA3.0, 6 USB3.0, Dual 10GbE, IPMI

• ATX server board with Xeon® Scalable processors
• DDR4 2933MHz RDIMM up to 768GB, support Intel Optane DC Persistent Memory
• Five PCIe x8 or two PCIe x16 and 1 PCIe x8
• Intel® X557-AT2 dual 10GbE ports
• Eight SATA3.0 and one M.2 connectors (SATA / PCIe compatible)
• 0 ~ 60 °C ambient operating temperature range
